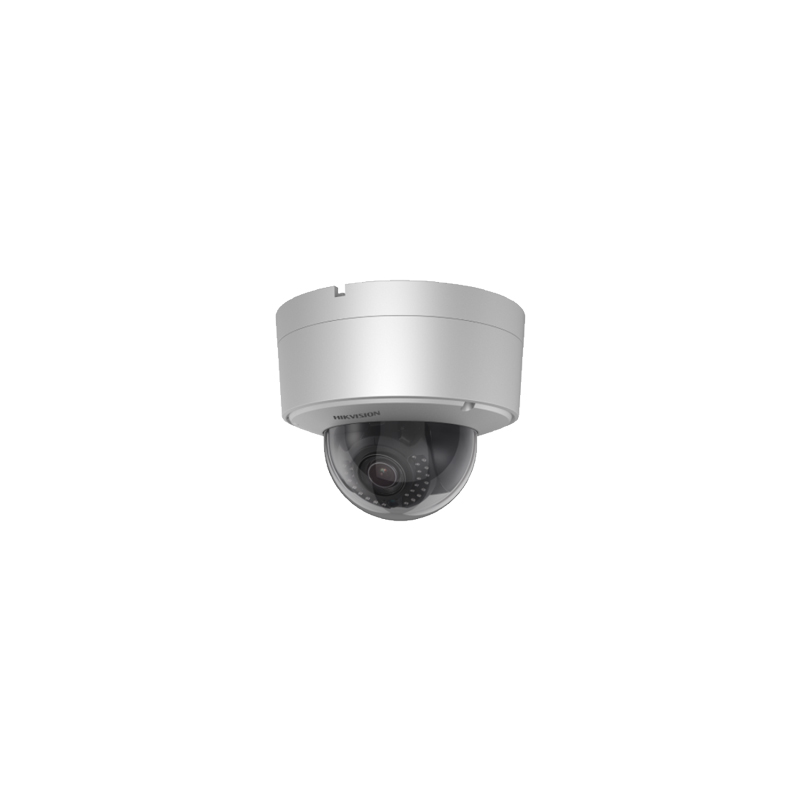

EXIR Motorized Varifocal Dome Anti-Corrosion Network Camera – DS-2CD6626DS-IZ(H)S

• Camera
• Image Sensor1/1.8″ Progressive Scan CMOS
• Min. Illumination

  Color: 0.002 Lux @ (F1.2, AGC ON)

  B/W: 0.0002 Lux @ (F1.2, AGC ON)

• Shutter Speed1 s to 1/100,000 s
• Slow ShutterSupport
• DNR3D DNR
• WDR120dB
• 3-Axis AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotation: 0° to 355°
• Day & NightIR cut filter with auto switch
• Lens2.8 to 12 mm F1.4, horizontal field of view: 92° to 32°
• Lens MountΦ 14

• Image
• Day/Night SwitchAuto, schedule, alarm trigger
• Picture OverlaySupport 24-bit, BMP, image overlay, zone optional
• Image SettingsCorridor mode, rotate mode, saturation, brightness, contrast, and sharpness are adjustable by client software or web browser
• Sub-Stream

  PAL: 50 Hz: 25 fps (352 × 288, 640 × 480, 704 × 576), NTSC: 25 fps (352 × 240, 640 × 480, 704 × 480)

  PAL: 60 Hz: 30 fps (352 × 288, 640 × 480, 704 × 576), NTSC: 25 fps (352 × 240, 640 × 480, 704 × 480)

• ROI (Region Of Interest)Up to 4 fixed areas in each stream or dynamic tracking
• DefogSupport
• EISsupport
• Highlight Compensationsupport
• Day / Night Modesupport
• Max. Resolution1920 × 1080
• Main Stream

  50 Hz: 50 fps (1920 × 1080, 1280 × 960, 1280 × 720)

  60 Hz: 60 fps (1920 × 1080, 1280 × 960, 1280 × 720)

• Third Stream

  Independent with Main Stream and Sub Stream, up to:

  50 Hz: 25 fps (1920 × 1080)

  60 Hz: 30 fps (1920 × 1080)

• Network
• Protocols

  TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,

  PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

• StandardONVIF (PROFILE S, PROFILE G), ISAPI

• Interface
• Alarm1 input/1 output (up to 24 V DC 1A or 110 V AC 500 mA)
• Video Output1 Vp-p composite output (75 Ω/BNC)
• On-Board Storageup to 128 GB

• Compression Standard
• H.264 TypeBaseline profile/main profile/high profile
• Video CompressionH.264/MJPEG/MPEG4
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Video Bit Rate32 Kbps to 16 Mbps
• Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 128 Kbps (MP2L2)

• General
• Power Supply24 VAC/12 VDC/PoE (802.3at)
• DimensionsΦ 165.4 mm × 130 mm (6.5″ × 5.1″)
• 3360 g (7.4 lb.)
• Power ConsumptionMax. 16 W
• Ingress ProtectionIP 67
• Anti-Corrosion Standard

  WF2, NEMA-4X

  C5-M: 720H neutral salt spray, 480H water condensation;

  Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity;

  Interior environments: buildings or areas with almost permanent condensation and with high pollution.
