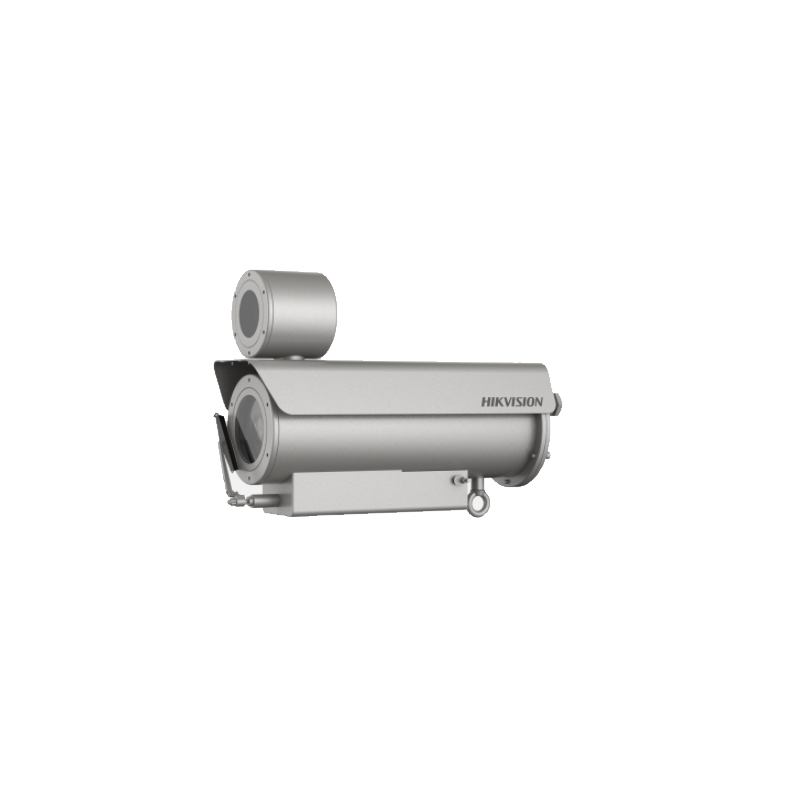

EXIR Motorized Varifocal Bullet Explosion-Proof Network Camera – DS-2XE6452F-IZH(R)S

• Camera
• Image Sensor1/1.8″ Progressive Scan CMOS
• Min. Illumination0.01Lux @(F1.2, AGC ON), 0.014Lux @(F1.4, AGC ON), 0 Lux with IR on
• Shutter Speed1 s to 1/100,000 s
• Slow ShutterSupport
• DNR3D DNR
• WDRDigital WDR
• Day & NightIR cut filter
• Lens2.8 mm to 12 mm, F1.4, horizontal FOV: 70° to 34°, vertical FOV: 52° to 24°, diagonal FOV: 90° to 41°
• Auto-IrisDC drive
• FocusAuto

• Audio
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Audio I/O3.5 mm audio input (line in), 3.5 mm audio output (line out), stereo

• Image
• Image EnhancementBLC/3D DNR/Defog/EIS
• Target CroppingYes
• Day/Night SwitchAuto/Schedule/Triggered by Alarm In
• Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
• Image SettingsSupport rotate mode. Saturation, brightness, contrast, sharpness, white balance, and AGC are adjustable by client software or web browser
• Sub-Stream

  50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)

  60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)

• ROI (Region Of Interest)Support 4 customized region for each stream, and face dynamic tracking
• Max. Resolution2592 × 1944
• Main Stream

  50Hz: 25fps (2592 × 1944, 2560 × 1920, 2048 × 1536), 50fps (1920 × 1080, 1280 × 960, 1280 × 720)

  60Hz: 30fps (2592 × 1944, 2560 × 1920, 2048 × 1536), 60fps (1920 × 1080, 1280 × 960, 1280 × 720)

• Third Stream

  50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)

  60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 ×240)

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

• Interface
• Communication Interface

  1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port,

  Camera with no wiper also supports RS-485

• Alarm2 alarm input, 2 alarm output (up to 24 VDC, 1 A or 110 VAC, 500 mA)
• Video Output1Vp-p Composite Output(75Ω/BNC)
• On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB

• Compression Standard
• H.264+support
• H.265+support
• H.264 TypeBaseline profile/main profile/high profile
• Video Compression

  Main stream: H.265/H.264

  Sub stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• H.265 TypeMain Profile
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Video Bit Rate32 Kbps to 16 Mbps
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

• IR
• IR Range2.8 mm to 12 mm lens: up to 80 m (262.5 ft.)

• Smart Feature-Set
• Face DetectionHuman face appears in the image can be detected and trigger linkage method
• Exception DetectionScene change detection, defocus detection, audio exception detection
• Line Crossing DetectionCross a pre-defined virtual line
• Intrusion DetectionEnter and loiter in a pre-defined virtual region
• Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
• Region EntranceEnter a pre-defined virtual region from the outside place
• Region ExitExit from a pre-defined virtual region
• Unattended BaggageObjects left over in the pre-defined region such as the baggage, purse, dangerous materials
• Object RemovalObjects removed from the pre-defined region, such as the exhibits on display.

• General
• Power Supply

  100 VAC to 240 VAC, three-core terminal block

  PoE (802.3at, class 4)

• Dimensions

  513.2 × 169 × 308 mm (20.2″× 6.65\” × 12.13\”)

  Package: 753 × 313 × 424 mm (29.65 × 12.32\” × 16.69\”)

• -IZHRS: camera, 17.8 kg (39.24 lb.); with package, 19.8 kg (43.65lb.)

  -IZHS: camera, 16.8 kg (37.04 lb.); with package, 18.8 kg (41.45 lb.)

• Power Consumption

  -IZHRS: 100 VAC to 240 VAC, 0.38 A to 0.18 A, max. 22.6W; PoE (802.3at, 42.5 V to 57 V), 0.56 A to 0.42 A, max. 23.6W

  -IZHS: 100 VAC to 240 VAC, 0.32 A to 0.11 A, max. 18.6 W; PoE (802.3at, 42.5 V to 57 V), 0.46 A to 0.34 A max. 19.6 W

• Heater-H: yes
• WiperWith –R model supports
