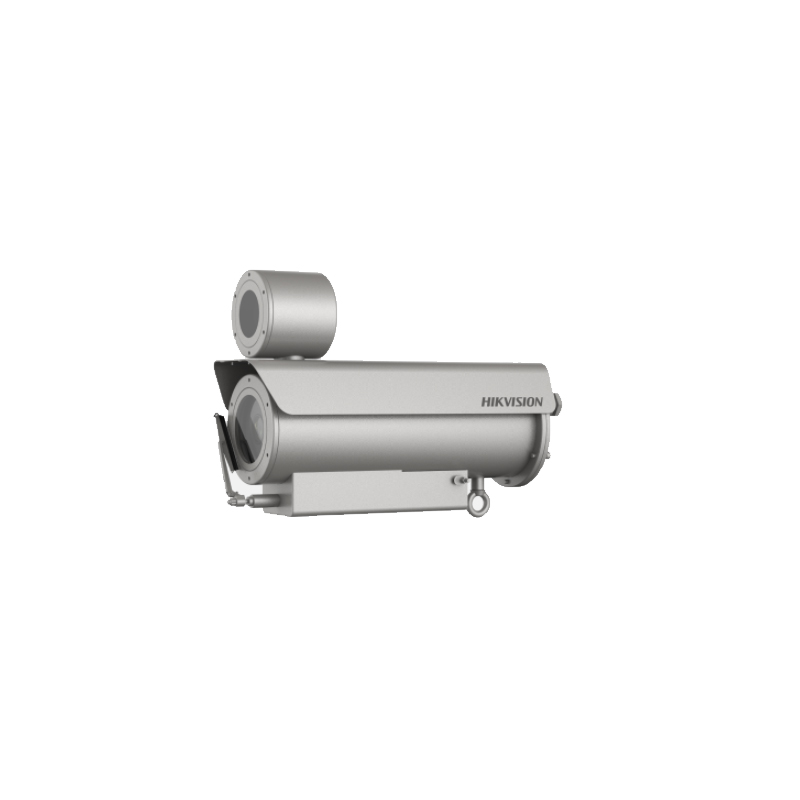

EXIR Motorized Varifocal Bullet Explosion-Proof Network Camera – DS-2XE6442F-IZHRS(B)

• Camera
• Shutter Speed1/3s to 1/100,000s
• P/NP/N
• Wide Dynamic Range120 dB

• Lens
• FocusAuto, semi-auto, manual

• Video
• Max. Resolution2688 × 1520
• Main Stream

  50 Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

  60 Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

• Third Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)

• Video Compression

  Main stream: H.265/H.264

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• Video Bit Rate32 Kbps~8Mbps
• H.264 TypeBaseLine Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main stream supports
• H.265+Main stream supports
• Bit Rate ControlVBR/CBR
• Scalable Video Coding (SVC)H.265 and H.264 support
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

• Camera
• Image Sensor1/1.8″ Progressive Scan CMOS
• Min. Illumination

  Color: 0.0005 Lux @(F1.2, AGC ON)

  B/W: 0.0001 Lux @(F1.2, AGC ON), 0 Lux with IR

• Slow ShutterYes
• DNR3D DNR
• Day & NightIR cut filter
• Lens

  2.8 mm to 12 mm, F1.4, horizontal FOV: 94° to 38°, vertical FOV: 49.9° to 21.3°, diagonal FOV: 112.3° to 43.7°

  8 mm to 32 mm, F1.7, horizontal field of view: 42.2° to 15.1°, vertical FOV: 23.4° to 8.6°, diagonal FOV: 49.6° to 17.3°

• Auto-IrisDC drive

• Audio
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
• Audio TypeMono sound
• Audio I/O1 line in/out

• Network
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface, ISAPI, SDK, Ehome
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS
• User/HostUp to 32 users, 3 levels: administrator, operator and user
• Network Storage

  microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE8+, Chrome41.0~44, Firefox30.0~51, Safari8.0~11

  Plug-in free live view: Chrome45.0+, Firefox52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

  Not recommended: Safari 11+, Edge

• Image
• Smart IRThe IR LEDs on camera should support Smart IR function to automatically adjust power to avoid image overexposure.
• Day/Night SwitchDay/Night/Auto/Schedule
• Target CroppingYes
• Image EnhancementBLC, HLC, 3D DNR, Defog, EIS
• Image Parameters SwitchYes
• SNR≥50db
• Privacy MaskYes
• Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
• Image SettingsSupport rotate mode. Saturation, brightness, contrast, sharpness, white balance, and AGC are adjustable by client software or web browser

• Event
• Smart Event

  Line crossing detection, up to 4 lines configurable

  Intrusion detection, up to 4 regions configurable

  Region entrance detection, up to 4 regions configurable

  Region exiting detection, up to 4 regions configurable

  Unattended baggage detection, up to 4 regions configurable

  Object removal detection, up to 4 regions configurable,

  Scene change detection, defocus detection

• Exception DetectionNetwork disconnected, IP address conflict, illegal login, HDD full, HDD error

• General
• Linkage MethodUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
• Online UpgradeYes
• Firmware Version5.5.153
• General FunctionAnti-flicker, 3 streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
• Software ResetYes
• Power Supply

  100 VAC to 240 VAC, three-core terminal block

  PoE (802.3at, class 4)

• Material316L+Anti-corrosion coating
• Dimensions

  513.2 × 169 × 308 mm (20.2″× 6.65\” × 12.13\”)

  Package: 753 × 313 × 424 mm (29.65 × 12.32\” × 16.69\”)

• 17.8 kg (39.24 lb.); with package, 19.8 kg (43.65lb.)

• Power Consumption100 VAC to 240 VAC, 0.38 A to 0.18 A, max. 22.6W; PoE (802.3at, 42.5 V to 57 V), 0.56 A to 0.42 A, max. 23.6W
• HeaterYes
• WiperYes
• Explosion-Proof Certificate

  ATEX: II 2 G Ex db op is IIC T6 Gb/ II 2D Ex tb op is IIIC T80°C Db

  IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db

  For explosive gas atmospheres, the maximum surface temperature is 85°C;

  For flammable dust atmospheres, the maximum surface temperature is 80°C;

  IIC: for explosive gas atmospheres other than mines susceptible to firedamp;

  For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.

• Interface
• Communication Interface

  1 RJ45 10 M/100 M self-adaptive Ethernet port,

  Camera with no wiper also supports RS-485

• Alarm2 alarm inputs, 2 alarm outputs (up to 24 VDC, 1 A or 110 VAC, 500 mA)
• Video Output1Vp-p Composite Output(75Ω/BNC)
• On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 256GB

• Approval
• EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
• SafetyUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
• Chemistry2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006

• IR
• IR Range

  2.8 mm to 12 mm lens: up to 80 m (262.5 ft.)

  8 mm to 32 mm lens: up to 150 m (492.1 ft.)

• Smart Feature-Set
• Line Crossing DetectionCross a pre-defined virtual line
• Intrusion DetectionEnter and loiter in a pre-defined virtual region
• Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
• Region EntranceEnter a pre-defined virtual region from the outside place
• Region ExitExit from a pre-defined virtual region
• Unattended BaggageObjects left over in the pre-defined region such as the baggage, purse, dangerous materials
• Object RemovalObjects removed from the pre-defined region, such as the exhibits on display.
