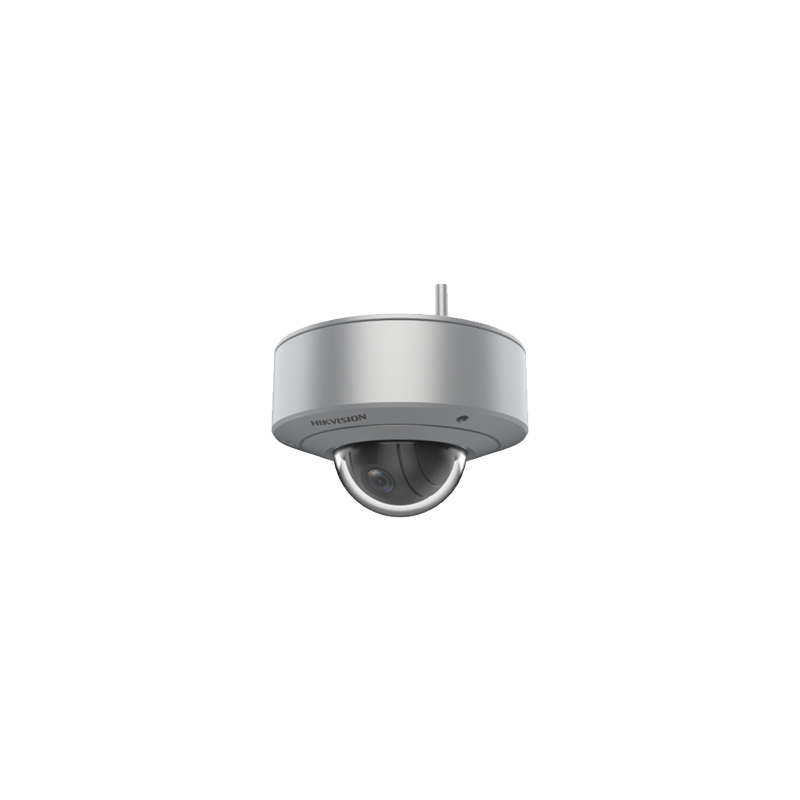

EXIR Fixed Dome Explosion-Proof Network Camera – DS-2XE6126FWD-HS(B)

• Camera
• Image Sensor1/2.8″ Progressive Scan CMOS
• Min. Illumination

  Color 0.003lux @(F1.2,AGC ON); 0.005Lux @ (F1.6, AGC ON)

  B/W 0.001lux @(F1.2,AGC ON); 0.017Lux @ (F1.6, AGC ON);

• Shutter Speed1 s to 1/100,000 s
• Slow ShutterSupport
• Angle Adjustment

  2mm: pan: 0° to 340°, tilt: 0° to 60°

  2.8 mm, 4 mm, 6 mm: 0° to 340°, tilt: 0° to 75°

• DNR3D DNR
• WDR120dB
• Day & NightElectronic
• Lens MountM12

• Lens
• Aperture2 mm@F2.2, 2.8 mm@F1.6, 4 mm@F1.6, 6 mm@F1.6
• FOV

  2 mm: horizontal FOV 126.5°, vertical FOV 73.8°, diagonal FOV 144°

  2.8 mm: horizontal FOV 108°, vertical FOV 59.3°, diagonal FOV 129°

  4 mm: horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102.3°

  6 mm: horizontal FOV 52.8°, vertical FOV 29.7°, diagonal FOV 60.7°

• Focal Length2 mm, 2.8 mm, 4 mm, 6 mm, optional

• Audio
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Audio I/OYes

• Image
• Image EnhancementBLC, 3D DNR, HLC, defog, EIS
• Target CroppingYes
• Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
• Picture OverlayLogo picture cab be overlaid on video with 128 × 128 24bit bmp format
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
• Sub-Stream

  50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)

  60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)

• Max. Resolution1920 × 1080
• Main Stream

  50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 ×720)

  60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×720)

• Third Stream

  50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)

  60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• APIOpen Network Video Interface, ISAPI, SDK, Ehome
• Simultaneous Live ViewUp to 20 channels
• User/Host

  Up to 32 users

  3 levels: Administrator, Operator and User

• ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
• Web BrowserIE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0+

• Interface
• Communication Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port, 1 RS-485 interface
• Alarm1 alarm input, 1 alarm output (supports max. 24 VDC, 1 A or 110 VAC, 500mA)
• Video Output1Vp-p composite output (75 Ω/BNC)
• On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
• Reset Buttonsupport
• SVCH.264 and H.265 support

• Compression Standard
• H.264+Main stream support
• H.265+Main stream support
• H.264 TypeBaseline Profile/Main Profile/High Profile
• Video Compression

  Main stream: H.265/H.264

  Sub stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• H.265 TypeMain Profile
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Video Bit Rate32 Kbps to 16 Mbps
• Audio Bit Rate64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2)

• Smart Feature-Set
• Face DetectionSupport
• Exception DetectionAudio exception detection
• Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exit detection, unattended baggage detection, object removal detection
• Region Of InterestSupport 4 fixed regions for each stream, and dynamic face tracking

• General
• Power Supply

  12 VDC ±20%, PoE (802.3af, class 3)

  Terminal block for DC input

• Camera: Approx. 2.5 kg (5.51 lb.)

  With package: approx. 3.46 kg (7.63 lb.)

• Power Consumption

  12 VDC, 0.8 A, max. 10 W

  PoE (802.3af, 36V to 57V), 0.3 A to 0.2 A, max. 12.5 W

• HeaterYes
