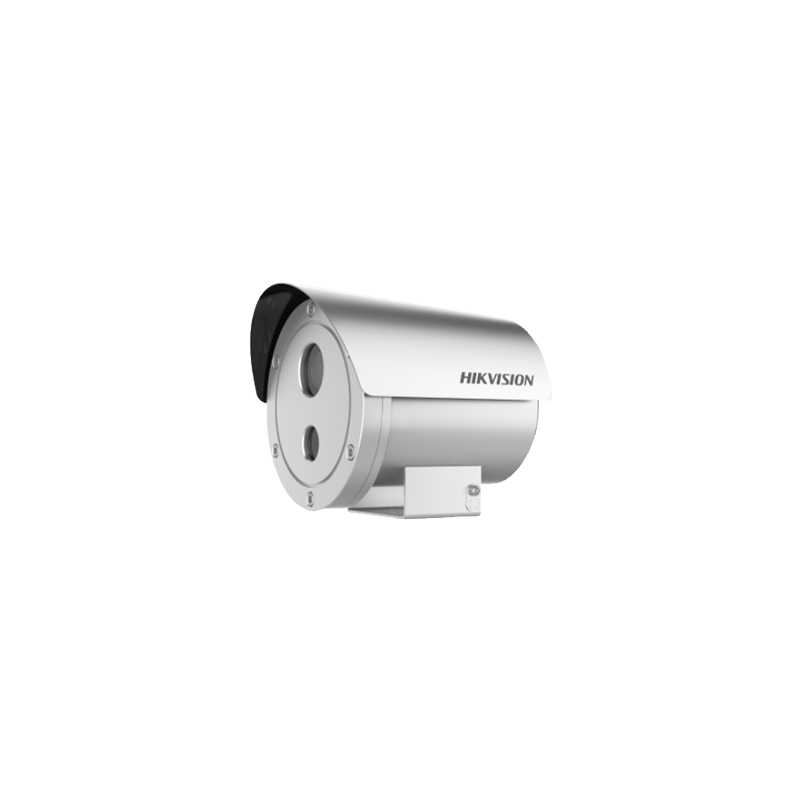

EXIR Fixed Bullet Explosion-Proof Network Camera – DS-2XE6242F-IS/316L(B)

Mã: DS-2XE6242F-IS/316L(B) Đã bán: 0 Lượt xem: 4

Liên hệ

0974 571 420 (8:00 - 21:30)

Camera
Image Sensor1/3″ Progressive Scan CMOS
Min. IlluminationColor: 0.01 lux @ (F1.2, AGC ON); B/W: 0.001 lux @ (F1.2, AGC ON), 0 Lux with IR on
Shutter Speed1 s to 1/100,000 s
DNR3D DNR
WDR120 dB
Day & NightIR cut filter
Lens4 mm, 6 mm, 8 mm, 12 mm
Lens MountM12

Network
Alarm TriggerMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Network StorageSupport microSD/SDHC/SDXC card (up to 128 GB) local storage and NAS (NFS, SMB/CIFS), ANR
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP
StandardONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General FunctionMirror, anti-flicker, heartbeat, watermark, password protection, privacy mask

Intelligent (Traditional Algorithm)
Face DetectionHuman face appears in the image can be detected and trigger linkage method

Image EnhancementBLC/3D DNR
Target CroppingSupport
Day/Night SwitchAuto/Schedule/Triggered by Alarm In
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Image SettingsSupport rotate mode, saturation, brightness, contrast, etc., adjustable by client software or web browser
Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)

60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
ROI (Region Of Interest)Support 4 customized regions for each stream, and face dynamic tracking
Max. Resolution2560 × 1440
Main Stream
50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

60Hz: 24fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream
50Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)

60Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 ×240)

General
Power Consumption And CurrentMax. 7 W
Power Supply
100 VAC to 240 VAC, 0.1 A, terminal block

PoE (802.3af, class 3), 0.2 A
Material
Stainless steel 316L
Operating Conditions-30°C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Protection LevelIngress protection: IK08 (IEC 62262:2002), IP68 (IEC 60529-2013)
Explosion-Proof Certificate
ATEX: II 2G Ex db IIC T6 Gb/ II 2D Ex tb IIIC T80°C Db IP68

IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68

For explosive gas atmospheres, the maximum surface temperature is 85°C;

For flammable dust atmospheres, the maximum surface temperature is 80°C;

IIC: for explosive gas atmospheres other than mines susceptible to firedamp;

For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
IR Range30 m
Dimensions (W × D × H)
Camera: 202 × 174 × 172 mm (7.95″× 6.85\” × 6.77\”)

Package: 435 × 255 × 285 mm (17.1 × 10\” × 11.2\”)
Weight (Without Hard Disk)
Camera: 5.99 kg(13.21 lb.)

With package: 7.07 kg(15.59 lb.)

Smart Feature-Set
Exception DetectionScene change detection, defocus detection
Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
