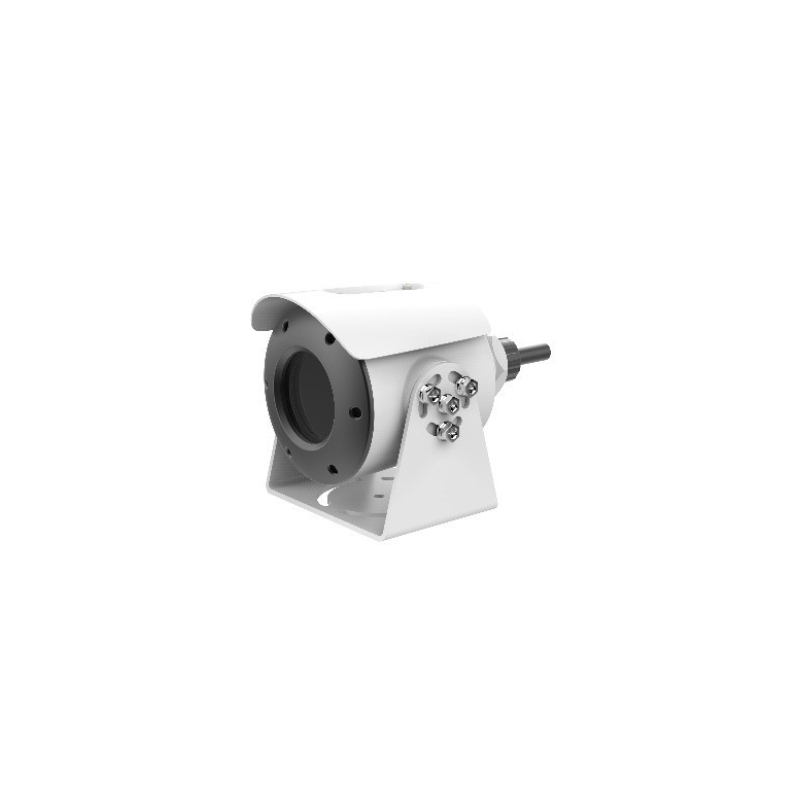

EXIR Fixed Bullet Explosion-Proof Network Camera – DS-2XE6025G0-I(S)(M)

Mã: DS-2XE6025G0-I(S)(M) Đã bán: 0 Lượt xem: 3

Liên hệ

0974 571 420 (8:00 - 21:30)

Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. Illumination
Color: 0.009 Lux @(F1.6,AGC ON)

B/W: 0.004 Lux @(F1.6,AGC ON), 0 Lux with IR on
Shutter Speed1 s to 1/100,000 s
Slow ShutterYes
Day &NightIR cut filter
Angle AdjustmentPan: 0° to 90°, tilt: 0° to 60°
WDR120 dB

Video
Max. Resolution1920 × 1080
Video Stream3 defined streams
Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)

60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 ×240)
Video Compression
Main stream: H.265/H.264

Sub stream: H.265/H.264/MJPEG

Third stream: H.265/H.264
H.264 TypeBaseline profile/main profile/high profile
H.265 TypeMain profile
Video Bit Rate32 Kbps to 16 Mbps
SVCH.264 and H.265 encoding
H.264+Yes
H.265+Yes

Audio
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise FilterYes

Smart Feature-Set
Smart Event
Line crossing detection, up to 4 lines configurable

Intrusion detection, up to 4 regions configurable

Region entrance detection, up to 4 regions configurable

Region exiting detection, up to 4 regions configurable

Unattended baggage detection, up to 4 regions configurable

Object removal detection, up to 4 regions configurable

Face detection: detects faces and upload images

Scene change detection, audio exception detection, defocus detection
Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Region Of Interest4 fixed regions for main stream, sub stream, and third stream, and dynamic face tracking
Linkage MethodUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

Image EnhancementBLC, HLC, Defog, EIS, Distortion Correction, 3D DNR
Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Target CroppingYes
Day/Night SwitchAuto/Schedule/Day/Night/Triggered by Alarm In (-S)
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Network
Network StoragemicroSD/SDHC/SDXC card (256 G), local storage and NAS (NFS, SMB/CIFS), ANR
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users, 3 levels: Administrator, Operator and User
ClientiVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox 30.0-51, Safari8.0-11

Plug-in free live view: Chrome 45+, Mozilla Firefox 52+

Interface
Communication Interface
-I, -IS: 1 RJ45 10M/100M self-adaptive Ethernet port

-IM: 4-core aviation plug
Audio (-S)1 input (line in), 1 output (line out), terminal block, mono sound
Alarm (-S)1 input, 1 output (12 VDC, 30 mA)
On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB

Approval
EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
SafetyUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
Chemistry2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
Protection
Ingress protection:

IK08 (IEC 62262:2002), IP68 (IEC 60529-2013)

Explosion-proof:

ATEX: II 2 G D Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68

IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68
Automotive And RailwayEN 50155-2017 (-IS model not supported), EN 45545, E-MARK, R118

General
Firmware Version5.5.82
Web Client Language
31 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian
General FunctionAnti-flicker, 3 streams, heartbeat, mirror, regions of privacy mask, flash log, password reset via e-mail, pixel counter, control timeout settings
ResetReset via reset button on camera body, web browser and client software
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Storage Conditions
-30 °C to 60 °C (-22 °F to 149 °F)

Humidity 95% or less (non-condensing)
Power Supply
24 VDC, reverse polarity protection

PoE: (802.3af, 36 to 57 VDC), 0.3 A to 0.2 A, max. 7.5 W

-I/-IS: Φ5.5 mm coaxial power plug

-IM: two-core WAGO connector
Power Consumption And Current
24 VDC, 0.3 A, max. 7.2W

PoE: (802.3af, 36 to 57 VDC), 0.3 A to 0.2 A, max. 7.5 W

(8 to 36 VDC supported)
MaterialAluminum alloy
Dimensions
Camera: 173.5 × 137.8 × 137.8 mm (6.8″ × 5.4″ × 5.4″)

With package: 313 × 213 × 208 mm (12.3″ × 8.4″ × 8.2″)
Camera: 2.14 kg (4.71 lb.)

With package: 2.86 kg (6.31 lb.)
