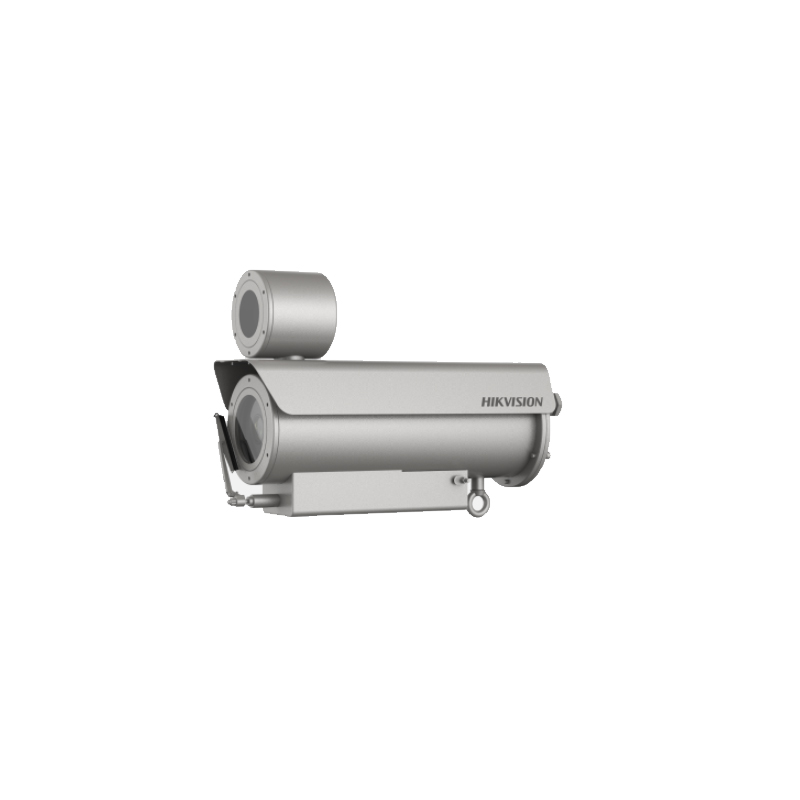

EXIR 36x Bullet Explosion-proof Network Camera – DS-2DB4236I-CWX

Mã: DS-2DB4236I-CWX Đã bán: 0 Lượt xem: 1

Liên hệ

0974 571 420 (8:00 - 21:30)

Image EnhancementHLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)

60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Max. Resolution1920 × 1080
Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream
50Hz: 25fps (1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60Hz: 30fps (1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Network
Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 128 GB; NAS (NPS, SMB/ CIPS), ANR
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users,3 levels: Administrator, Operator and User
ClientiVMS-4200, iVMS-5200, iVMS -4500
Web BrowserIE 8+, Firefox 30+, Safari 8.0+ web browser
Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Camera Module
Image Sensor1/1.8″ progressive scan CMOS
Min. Illumination
Color: 0.002 Lux @(F1.5, AGC ON)

B/W: 0.0002 Lux @(F1.5, AGC ON)

0 Lux with IR
White BalanceAuto/Manual/ATW (Auto Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
GainAuto/Manual
Shutter Time1/1 s to 1/30,000 s
Day & NightIR Cut Filter
Digital Zoom12×
Focus ModeAuto/Semi-automatic/Manual
WDRDWDR

Smart Features
Basic Event DetectionMotion Detection, Video Tampering Detection, Alarm Input, Alarm Output
Smart DetectionIntrusion Detection, Line Crossing Detection, Audio Exception Detection
ROIMain stream, sub-stream and third stream respectively support two fixed areas.

General
Dimensions513.2 × 169 × 308 mm (20.2″× 6.65″ × 12.13″)
Approx. 17.5 kg (38.58 lb)
Protection LevelIP68 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Power
100 VAC to 240 VAC & PoE+ (IEEE802.3at class4)

Max. 25 W
Working TemperatureTemperature: Outdoor: -40°C to 60°C (-40° F to 140° F)
Working Humidity≤ 95%
Explosion-Proof Certificate
CML 17ATEX1189X: II 2 G Ex db op is IIC T6 Gb/ II 2 D Ex tb op is IIIC T80°C Db

IECEx CML 17.0103X: Ex db IIC T6 Gb/Ex tb IIIC T80°C Db

For explosive gas atmospheres, the maximum surface temperature is 85°C;

For flammable dust atmospheres, the maximum surface temperature is 80°C;

IIC: for explosive gas atmospheres other than mines susceptible to firedamp;

For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
