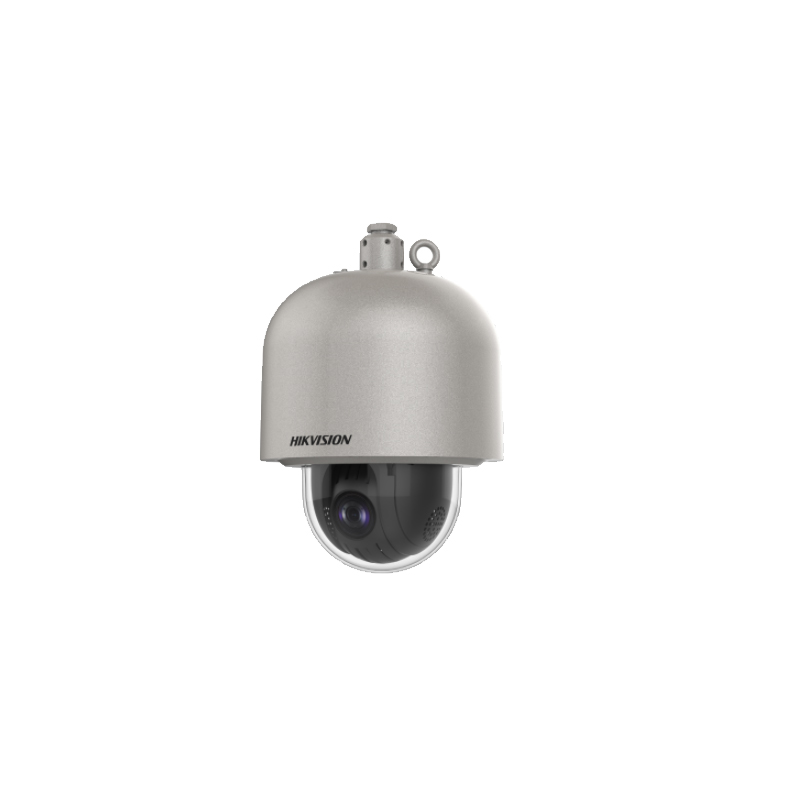

DS-2DF6223-CX (W316L) – 6-inch 23x Explosion-proof Network Speed Dome

• Lens
• FOV59.8° to 3.0° (Wide-Tele)
• Zoom SpeedApprox. 4.8 s (Optical Lens, Wide-Tele)
• Working Distance10 mm to 1500 mm (wide-tele)
• Aperture RangeF1.5 to F3.4
• Focal Length5.9 mm to 135.7 mm, 23× optical zoom

• Image
• Sub-Stream

  50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)

  60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

• Max. Resolution1920 × 1080
• Main Stream

  50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

  50fps (1920 × 1080, 1280 × 960, 1280 × 720)

  60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

  60fps (1920 × 1080, 1280 × 960, 1280 × 720)

• Third Stream

  50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

  60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Compression Standard
• SVCYes

• Camera Module
• Image Sensor1/1.9″ progressive scan CMOS
• Min. Illumination

  Color: 0.002 Lux @(F1.5, AGC ON)

  B/W: 0.0002 Lux @(F1.5, AGC ON)

• White BalanceAuto/MWB/Auto-tracking/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
• Shutter Time1/1 s to 1/30,000 s
• Day & NightIR Cut Filter
• Digital Zoom16×
• Privacy Mask8 programmable privacy masks
• Focus ModeAuto/Semi-automatic/Manual
• WDR120 dB

• PTZ
• Movement Range (Pan)360° endless
• Pan SpeedConfigurable, from 0.1°/s to 300°/s, preset speed: 540°/s
• Movement Range (Tilt)From 0° to 90° (Auto Flip)
• Tilt SpeedConfigurable, from 0.1°/s to 240°/s, Preset Speed: 400°/s
• Proportional ZoomYes
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans, record time over 10 minutes for each scan
• Power-Off MemoryYes
• Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• PTZ Status DisplayYes
• Preset FreezingYes
• Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

• General
• Explosion-Proof Certificate

  TÜV 16 ATEX 7950X: Ex db IIC T6 Gb/Ex tb IIIC T80°C Db

  IECEx TUR 16.0050X: II 2 G Ex db IIC T6 Gb/ II 2 D Ex tb IIIC T80°C Db

  For explosive gas atmospheres, the maximum surface temperature is 85°C;

  For flammable dust atmospheres, the maximum surface temperature is 80°C;

  IIC: for explosive gas atmospheres other than mines susceptible to firedamp;

  For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
